En överblick över specifikationer
-
Measuring range
–1 500 to 1 500 mV
-
Process temperature
0 to 100 °C (32 to 212 °F)
0 to 140 °C (32 to 284 °F) (140 °C (284 °F) or sterilization only) -
Process pressure
0.8 to 7 bar (11.6 to 101.5 psi) absolute
Applikationsområde

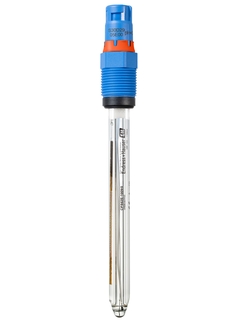

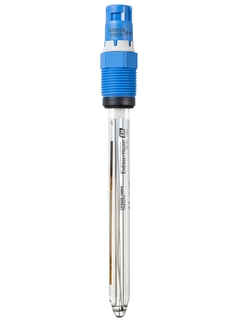

Memosens CPS62E is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media, in low conductivities and at high temperatures. Thanks to Memosens 2.0 digital technology, CPS62E combines maximum process integrity with simple operation. It resists moisture and enables lab calibration. It offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
Process technology and monitoring of processes with:
- Quickly changing ORP values
- High proportion of electrode poisons such as H2SChemical processes
Hygienic and sterile applications:
- Fermenters
- Biotechnology
- Life sciences
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Fördelar
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Sensor resists strong acids and bases and high organic loads.
Maintains high accuracy even after CIP/SIP or autoclaving.
Free from animal-based materials and from acrylamide.
Upside-down mounting option allows for flexible installation.
Maximum process safety is ensured by non-contact, inductive signal transmission.
Minimized process downtime and extended sensor lifetime result in reduced operating costs.
