Ersättare

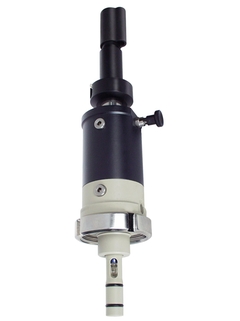

Flexible process assembly for the water & wastewater and chemical industries
Mer information
Enkla produkter
Enkla att välja, installera och använda
Tekniska egenskaper
Enkelhet
Standardprodukter
Pålitliga, robusta och lätta att underhålla
Tekniska egenskaper
Enkelhet
High-end produkter
Mycket funktionella och praktiska
Tekniska egenskaper
Enkelhet
Specialprodukter
Designade för krävande applikationer
Tekniska egenskaper
Enkelhet
FLEX urvalet
Tekniska egenskaper
Enkelhet
Fundamental urvalet
Möt dina grundläggande mätbehov
Tekniska egenskaper
Enkelhet
Lean urvalet
Hantera dina kärnprocesser med enkelhet
Tekniska egenskaper
Enkelhet
Extended urvalet
Optimera dina processer med innovativa teknologier
Tekniska egenskaper
Enkelhet
Xpert urvalet
Hantera dina mest utmanande applikationer
Tekniska egenskaper
Enkelhet
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4"
Material
Holder: PP, PEEK, PVDF sealing : different material available.
Dimension
Immersion depth: 66 - 215 mm (2.57 inch - 8.38 inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6 bar (58 psi or 140°F)
Connection
Thread G1, 25" external; thread NPT1 "external; flange DN50/ASME2", dairy fitting DN50.
Application
Water, waste water, process
Characteristic
Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 310.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material
Holder : PP, PEEK, PVDFSealing : different material available.
Dimension
Immersion depth : 66 - 215mm (2.57inch - 8.38inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6bar ( 58psi or 140°F)
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
Application
Water, waste water, process
Characteristic
- Retractable holder- Open and closed tank, piping (min DN80)
Design
- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material
Holder : PP, PEEK, PVDFSealing : different material available.
Dimension
Immersion depth : 66 - 215mm (2.57inch - 8.38inch)
Process temperature
max. 60 or 80°C (140°F or 176°F)
Process pressure
max. 4 or 6bar ( 58psi or 140°F)
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
5 dokument
Technical Information Topcal S CPC310
Fully automatic measuring, cleaningand calibration system in hazardous and non-hazardous areas
EN
SV
Tyska French Italienska Polska Ryska
22/07/2015
01/07/2006
Språk:
Engelska
Version:
22/07/2015
Filstorlek:
2 MB
Filnamn:
TI00404CEN_1315.pdf
Technical Information
Cleanfit P CPA472
Retractable Process Assembly
EN
SV
Tyska French Italienska Kinesiska
19/04/2012
01/01/2008
01/06/2002
Språk:
Engelska
Version:
19/04/2012
Filstorlek:
743.6 KB
Filnamn:
TI00223CEN_1312.pdf
Operating Instructions
Cleanfit CPA472D
Retractable Process Assembly
EN
SV
Tjeckiska Tyska French Italienska Japanska Polska
08/10/2013
01/09/2010
01/05/2006
Språk:
Engelska
Version:
08/10/2013
Filstorlek:
1.3 MB
Filnamn:
BA00403CEN_1313.pdf
Operating Instructions
Cleanfit P CPA472
Retractable Process Assembly
EN
SV
Tjeckiska Tyska Spanska French Italienska
19/04/2012
01/01/2008
02/07/2003
01/03/2000
Språk:
Engelska
Version:
19/04/2012
Filstorlek:
1018.4 KB
Filnamn:
BA00223CEN_1312.pdf
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
Språk:
Engelska
Version:
01/07/2003
Filstorlek:
1.6 MB
Filnamn:
Sd096ca2.pdf
Sök efter reservdelar efter nummer på ritningen
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Kit CPA471/472/475: Retr. pipe KCl pneum
Kit CPA471/472/475:Retr. pipe KCl manual
KIT CPA 471/472 retr.pipe Gel pn.short
KIT CPA471/472 shaft pneum long
KIT CPA471/472 retr.pipe Gel hand short
KIT CPA471/472 lift tube gel hand long
KIT CPA472 electrode pipe PP short
KIT CPA472 electrode guide PVDF short
KIT CPA472 Pistion compl. PP long
KIT CPA472 Sensor guide long complete
KIT CPA472 electrode guide PEEK long
KIT CPA47x pneu.connection G1/8 AD6 10p
KIT CPA47x:stop bolt with handle (1 pc.)
KIT CPA47x: sealing plug M12x1 (10 pcs.)
KIT CPA472 air coil, dummy plug PP
KIT CPA47X: Throttel check valve
KIT CPA471/472 cyl.screw M6x30 20 pieces
KIT CPA471/472 cyl. screw M6x45 20 pcs.
KIT CPA472rinse housingG11/4 0.SPU PP
KIT CPA472rinse housingG11/4 0.SPU PV
KIT CPA472rinse housingG11/4 0.SPU PE
KIT CPA472 rinse housingG11/4 G1/4 PP
KIT CPA472RinsinghousingG11/4 G1/4 PV
KIT CPA472 rinse housingG11/4 G1/4 PE
KIT CPA472 rinse housing NPT 1.0 PP
KIT CPA472 rinse housing NPT1.0 PV
KIT CPA472 rinse housing NPT1 NPT1/4 PP
KIT CPA472rinse housingNPT1 NPT1/4 PV
KIT CPA471/472 cylinder PA short
KIT CPA473/474 cylinder PA short
Pneum. proxim. switches f.retrofitting
KIT CPA47x electr. proxim.switches
KIT CPA472 retrofit kit flange DN50PP
KIT CPA472 retrofit kit flange DN50PV
KIT CPA472 retrofit kit flangeANSI2 P
KIT CPA472 retrofit kit flangeANSI2PV
KIT CPA472 retrofit kit flangeANSI2PE
KIT CPA472 retrofit kit sl.nut RD78PP
KIT CPA472 retrofit kit sl.nut RD78PV
KIT CPA472 retrofit kit sl.nut RD78PE
CPA471...5 all seals w/o medium contact
FPM (Viton) O-ring set for CPA472
Kalrez O-ring set for CPA472
Kit CPA472/D: 20 pcs. O-ring ID14 W3 FPM
Ritningsnummer
Orderkod
14-1
71090063
Kit CPA472/D: 2 pcs.O-ring ID14W3 KALREZ
Ritningsnummer
Orderkod
14-1
71090065
Splash protection cap for assemblies
Kit Sensor output interface
