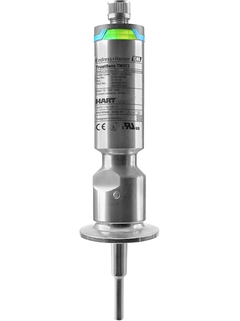

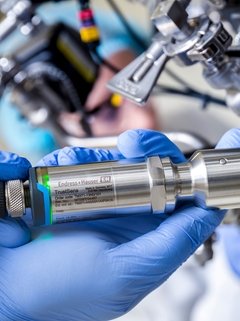

iTHERM TrustSens TM372 Hygienic compact thermometer, US Style

iTHERM TrustSens TM372
Compact thermometer

Imperial RTD thermometer with self-calibration technology for hygienic applications

TM372

Jämför

iTHERM TrustSens TM372 Hygienic compact thermometer with self-calibrating function, US Style — iTHERM TrustSens - the thermometer for the food industry

iTHERM TrustSens TM372 self-calibrating hygienic compact thermometer with QuickNeck, US Style — iTHERM TrustSens with patented QuickNeck for all hygienic and aseptic applications

iTHERM TrustSens TM372 self-calibrating hygienic compact thermometer for higher product safety — iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications

En överblick över specifikationer

Response time

t50 = 2,5 s
t90 =9,5s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

PT 100:
-40 °C …160 °C (-40 °F …320 °F),
optional up to 190 °C (374 °F)
Max. immersion length on request

up to 28'' (711 mm)
others on request

Visa alla specifikationer

Applikationsområde

The award-winning smart temperature probe with integrated HART® transmitter and Heartbeat Technology features the world’s first RTD sensor unit capable of fully automated in-situ self-calibration. It effectively eliminates the risk of undetected non-conformities, reduces production downtime and increases product safety and process efficiency in applications of the food & beverage and life sciences industries. The device is fully compliant to FDA 21 CFR Part 11 regulations and GMP rules.

Specially designed for use in hygienic and aseptic applications in the food & beverage and life sciences industries
Measuring range: –40 to 190 °C (–40 to 374 °F)
Pressure range up to 50 bar (725 psi)
Protection class: IP65/67 or IP69
Communication: Analog output 4 to 20 mA, HART^® protocol

Fördelar

Risk and cost reduction thanks to self-calibration and Heartbeat Technology
No production downtime due to an automated and fully traceable inline self-calibration
Automatized documentation, memory for 350 calibration points.

Printable calibration certificate - audit proof.
Automated 4 to 20 mA loop check for saving time and increasing safety in your process. See how iTHERM TrustSens can perform a fully automated loop check in five easy steps. The video shows the device set up and benefits for your process.
Elimination of non-conformities or undetected failures
International certifications and approvals:
– EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE CRN, CSA General Purpose, Explosion protection, e.g. ATEX/IECEx
Highest accuracy of measuring point through sensor-transmitter matching

Videor

Smart instrumentering med Heartbeat Technology

Vill du öka anläggningens produktion och sänka kostnaderna? Vår smarta instrumenteringsportfölj med Heartbeat Technology ger djupgående inblick i enheterna för ökad kostnadseffektivitet och driftsäkerhet.
- Mer information
iTHERM TrustSens självkalibrerande RTD-sensor för sanitära applikationer

En unik temperatursensorteknik baserad på ett integrerat fixpunktsreferenselement som möjliggör tillförlitlig och exakt omkalibrering av den primära Pt100 RTD-sensorn.
- Mer information

Xpert urvalet

Specialprodukter
Designade för krävande applikationer

Tekniska egenskaper

Enkelhet

Varierande

Vad är FLEX?

Xpert: Hantera dina mest utmanande applikationer

Enkla produkter
Enkla att välja, installera och använda

Tekniska egenskaper

Enkelhet

Vad är FLEX?

Standardprodukter
Pålitliga, robusta och lätta att underhålla

Tekniska egenskaper

Enkelhet

Vad är FLEX?

High-end produkter
Mycket funktionella och praktiska

Tekniska egenskaper

Enkelhet

Vad är FLEX?

Specialprodukter
Designade för krävande applikationer

Tekniska egenskaper

Enkelhet

Varierande

Vad är FLEX?

FLEX urvalet	Tekniska egenskaper	Enkelhet
F L E X Fundamental urvalet Möt dina grundläggande mätbehov	Tekniska egenskaper	Enkelhet
F L E X Lean urvalet Hantera dina kärnprocesser med enkelhet	Tekniska egenskaper	Enkelhet
F L E X Extended urvalet Optimera dina processer med innovativa teknologier	Tekniska egenskaper	Enkelhet
F L E X Xpert urvalet Hantera dina mest utmanande applikationer	Tekniska egenskaper	Enkelhet Varierande

Lär dig mer om FLEX urvalet

Loading alternative products

Kundcase

Automated inline self-calibration at Lonza

Automated inline self-calibration at Lonza for full monitoring throughout bioprocess
Läs hela berättelsen

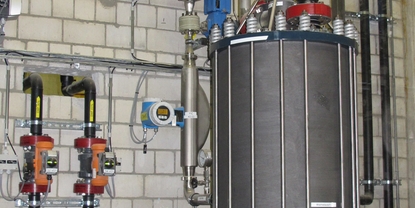

Optimerat logistikkoncept för tanksystem

Vi implementerade ett mycket effektivt logistikkoncept i kemiföretaget Brenntag Schweizerhall AG:s anläggning i Basel.
Läs hela berättelsen

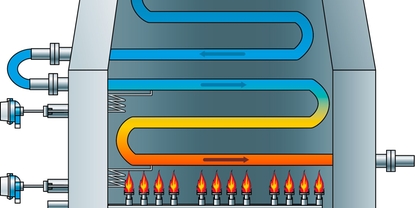

Tube skin temperature measurement

How thermometers can detect pipe overheating, lead to significant energy savings and increase process efficiency and product quality
Läs hela berättelsen

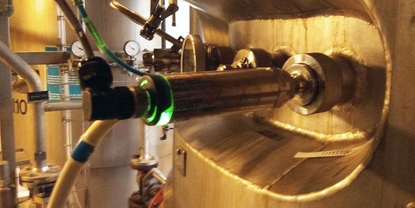

Prevent grain dust ignition in bulk tanks & silos
